- Powerful performance: This industrial mini PC features an Intel Comet Lake Core i7 10510U Processor with 4 cores, 8 threads, 1.8GHz up to 4.9 GHz speed and 8MB cache. It also has Intel UHD Graphics for smooth graphics and video output.
- Multiple connectivity options: You can connect this mini PC to various devices and networks with 2 x Intel Giga LAN, 6 x COM, VGA HDMI dual display, 4 x USB3.0, 4 x USB2.0 ports. It also supports 3G/4G and WIFI modules for wireless communication.
- Fanless and dustproof design: This mini PC is completely fanless and sealed with an aluminum alloy body, which can prevent industrial dust from entering the machine and ensure stable operation for long hours.
- Smart features: This mini PC supports AWAL, RTC, WOL, PXE functions, which can help you automate tasks, manage time, wake up remotely and boot from network.
- Wide application: This mini PC is suitable for various scenarios such as automatic equipment, digital signage system, multimedia classroom, IOT, gate access control system and more.
Model Number: Partaker I11
Color:Black
Type: IPC type with mounting ears
Processor: Intel Core i7-10510U Processor, 8M Cache, up to 4.90 GHz
Memory: 1* SO-DIMM DDR4, max. 32GB

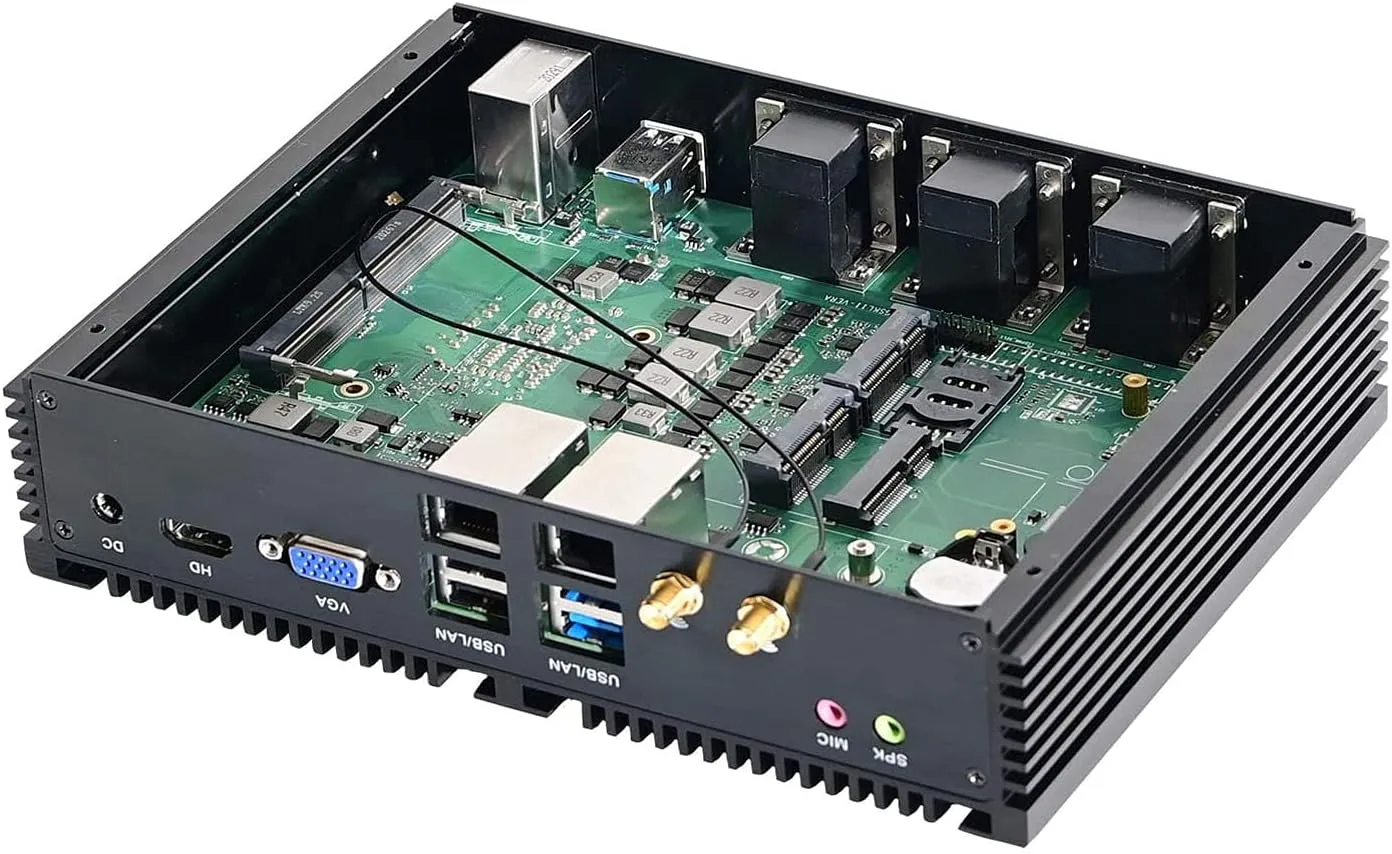

Storage: 1* Msata SSD 1* M.2 2280 SSD 1* 2.5 Inch HDD
Expansion 1* MSATA3.0 6Gb/s, 1*SATA3 6Gb/s, 1*ngff M.2 2280 (sata/nvme); 1* WiFi half size Mini PCIE; 1* WiFi full size Mini PCIE(Support 4G, with SIM slot)
NIC: 2* intel i211 Gigabit
Audio Cards: ALC662
WIFI: With dual antennas, 802.11ac 2.4 5Ghz (4G could be customized, contact us)

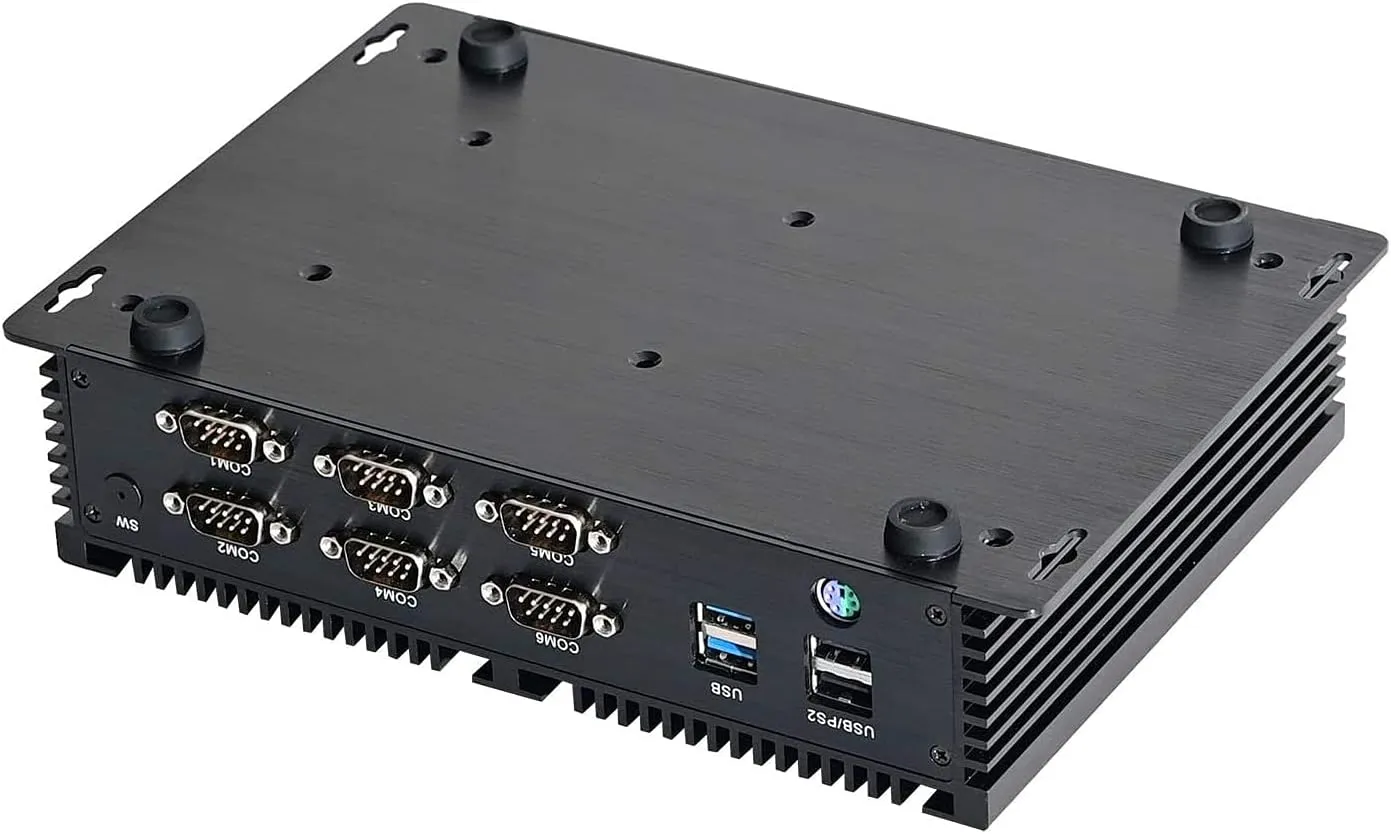

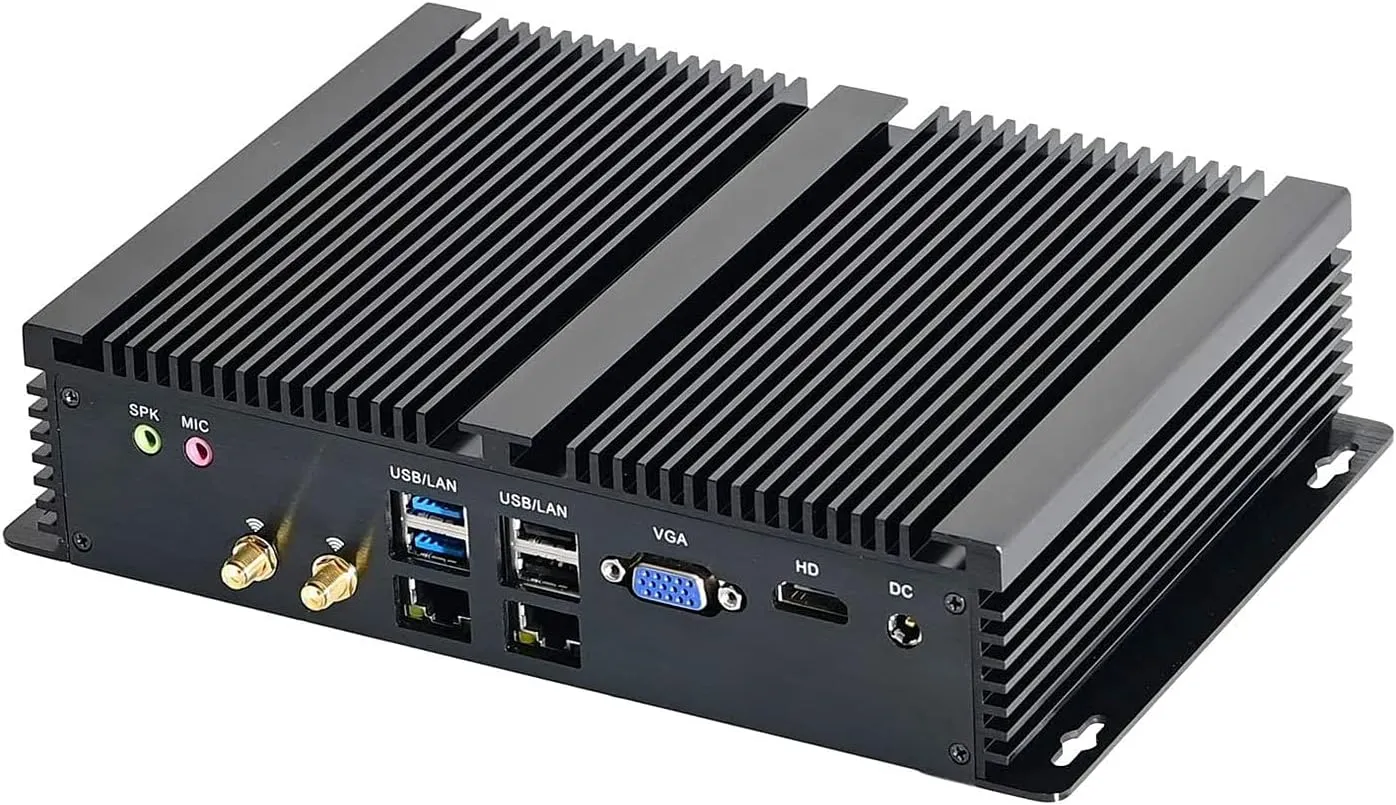

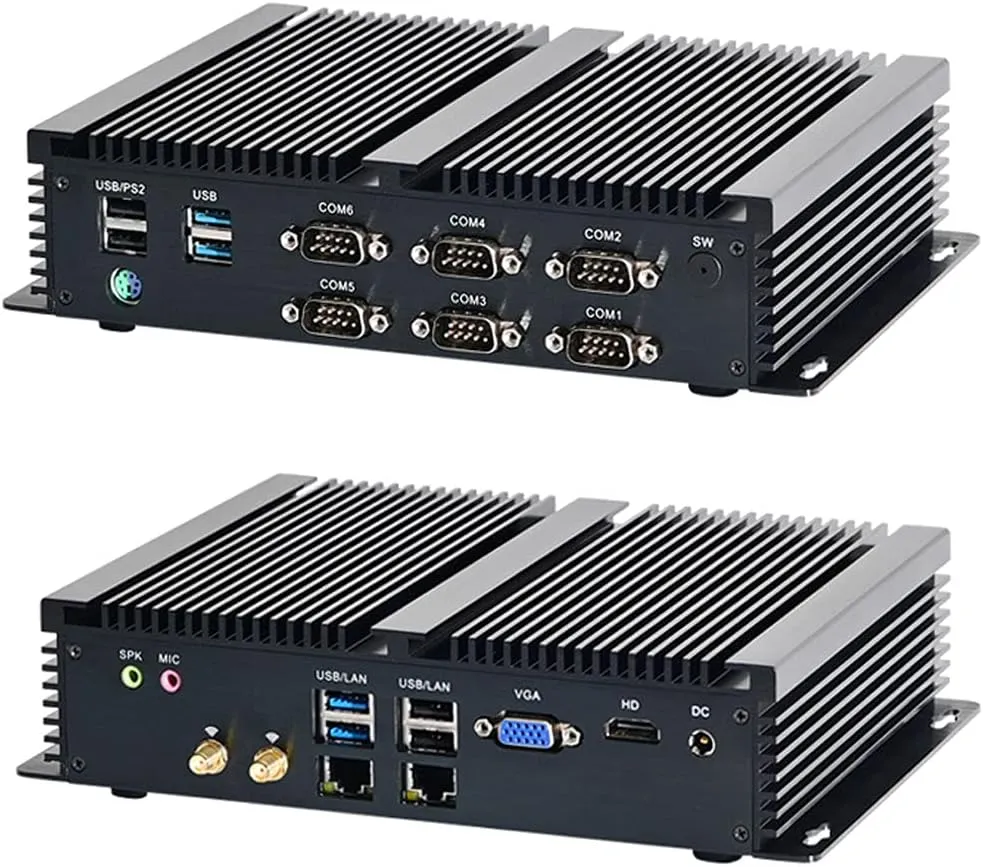

Ports: 4*usb3.0 4* usb2.0 2* lan vga hdmi 6* com dc sw ps/2
Power supply: DC100-240V AC/50-60Hz, DC 12V3A
Size: 210*155*50mm
Weight: Gross 2.5kg
Operating Temperature: -10°C~60°C (32°F~140°F))
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
Cooling system: Fanless
Standard:1xMini PC, 1xPower Adapter, 1xPower Cord,
Function:1. Green ultra-low power consumption, 7*24 hours
2. 6* COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS
3. 8-bit GPIO for industrial equipment needs
4. Watchdog for 256-level
5. Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume By Alarm, PXE Lan boot functions
Packing List:Industrial PC Power supply Power Cord WiFi antennas
System Support:Windows 10,Linux Ubuntu,Vxworks etc; System Default Option: Windows 10 pro in English
ATTENTION: Barebone, Single RAM, Single SSD or SSD HDD without any system.,Linux ubuntu or other OS, Do need to leave us message on the order, thank you.
